Bespoke Doors by Jonathan Elwell

GLASS OPTIONS - DOORS - SEE BELOW FOR WINDOWS

The prices in our door pages include supply of toughened PLANITHERM double glazed units (CLEAR)
56mm doors have 24mm toughened argon filled units with warm edge spacer bars
44mm replacement doors have 14mm toughened argon filled double glazed units

Glass Proportions:
The pictures in the website are for illustration only glass content and pane sizes may vary depending on your sizes.
Our experienced joiners will work out the best proportions from the sizes you give us.
If you have a specific requirement please ask.

IMPORTANT!
OUR DOORS (APART FROM SINGLE VISION PANELS) ARE GLAZED FROM THE OUTSIDE THIS IS THE TRADITIONAL WAY FOR WOODEN DOORS -
IF YOU REQUIRE YOUR DOOR TO BE GLAZED FROM THE INSIDE PLEASE STATE AT TIME OF ORDER

All our glazed doors are individual pieces of glass i.e. 6 pane stable door has 6 panes not one pane with bars planted
on the front unless requested otherwise

Sandblasted glass with number etched
24mm Planitherm argon filled double glazed units with warm edge (swiss) spacer bars

sandblast glass

VISION PANELS
(Add to the price on the relevant door page)

TEXTURED GLASS PATTERNS (Pilkingtons) FOR VISION PANELS OR MULTIPLE PANE DOORS
Add £10.00 PER INDIVIDUAL PIECE I.E. 4 PANE STABLE DOOR ADD £40 + VAT FOR TEXTURED

Charcoal Sticks

Everglade

Contora

Minster

Oak

Mayflower

Chantilly

Click here for further information
on Pilkington textured glass

Prices in the door pages include toughened PLANITHERM CLEAR double glazed units
These designs are available on Minster or clear glass (same price)
Glass Prices for Multiple Pane Doors - p.o.a.
Black Small Diamond Lead


Add £60 + VAT
Red Small Diamond Lead


Add £60 + VAT
Green Small Diamond Lead


Add £60 + VAT

Small Diamond No Colour


Add £50 + VAT

Square Lead


Add £50 + VAT

Rose Design


Add £120 + VAT

Large Diamond Lead


Add £50 + VAT

Sandblasted


add £40 + VAT

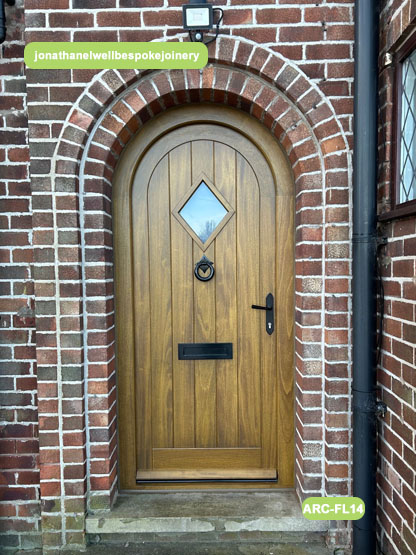

Diamond vision panel


P.O.A.



Porthole Vision - P.O.A.

SANDBLAST GLASS WITH CLEAR BORDER

sandblast glass clear border

Click here to see more Regalead decorative glass patterns

PATTERN DB1B ON MINSTER

PATTERN DB18B ON CLEAR


PATTERN DB14A - VICTORIAN DOUBLE DOORS

victorian double doors

Click the images above to see the complete door

Click here for REGALEAD brochure

GLASS OPTIONS - WINDOWS - See Window Pages for further information on windows

For energy efficiency our windows are supplied with 4/16/4 (24mm) PLANITHERM argon gas filled
double glazed units (U value of 1.2) warm edge spacers are available if required



We can supply other types of glass or supply the windows without.
*Our windows are heavy so for delivery and fitting purposes glass is supplied only glazing beads are supplied cut to size.

What is a U Value?
Simply put a U-value refers to the amount of heat transference across any structure.
U-Values are used as a way to attempt to quantify the amount of heat energy lost through the external fabric of a building across different materials. The lower a u-value, the higher the thermal efficiency of a material and the less heat loss you will experience through the material.

In more technical terms the U-Value is defined as the rate of heat flow in watts (W) through an area of 1 square metre (m) for a temperature difference across the structure of 1 C degree centigrade or Kelvin (K). U-Value measurement are written as W/m2K.
U-values for glazing are broken down into two types; the centre pane U-Value for the glass material itself, known as the UG value, and the UW value which is the U-Value for the entire glazing system, including any framing, fixings etc.
