Door Frames by Jonathan Elwell

DOOR FRAME STYLES / CONFIGURATIONS

We can make all types of frames and combination frames, here are some examples. Email or call if you would like further information. All our work is made to your requirements so anything is possible.

Door Frame Information

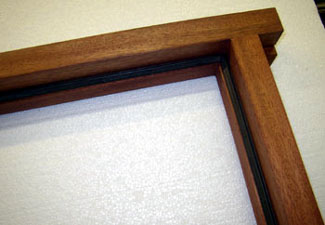

Standard frame sections: Jambs and head: 70mm x 95mm - Thicker sections available p.o.a.

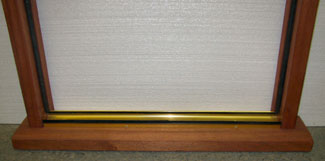

Typical cill dimensions: 44mm x 145mm other options available p.o.a.

Opening in door frames are supplied complete with lowline disabled access stormguard cill (Part M compliant) unless requested otherwise. Opening out door frames do not have a stormguard sill the wooden sill is rebated with a slight bevel and the bottom of the door is bevelled to suit to avoid water egress.

Stormguard sill info: - Macclex MXS/15-56
The only threshold specifically designed for 56mm doors, this is the most popular inward opening sill on the market
High performance one piece sill
EPDM rubber seal ensures protection against the elements
Part M Compliant

Aquamac 124 Seal: All our frames are supplied with Aquamac 124 Weatherseal specifically designed to meet the varying demands of timber windows and doors, AquamacTM maintains consistently high standards of energy efficiency, often exceeding long-term window performance guarantees

Conforms to BS644, BBA approved
Impervious to paint and stain
Water repellent foam does not freeze
Unaffected by rot, mould or mildew
Immune to the effects of UV light and ozone
Excellent memory and compression qualities
Unrivalled thermal performance
Performance over a wide operating temperature range
Guaranteed 10 year performance guarantee
